MDL3 / ModelSet3¶
Applies to: GT5, GTPSP, GT6 · Extension: .mdl / none · Endian: Big (GT5/GT6) · Little (GTPSP)
ModelSet3 is a direct upgrade to MDLS / ModelSet2. It still contains models with bytecode to set up which meshes to load and a virtual machine for callbacks. The main upgrade is that meshes now use flexible vertex definitions, bundled shaders and in the case of GT6, tesslated meshes and PMSH - packed meshes to save on memory usage.

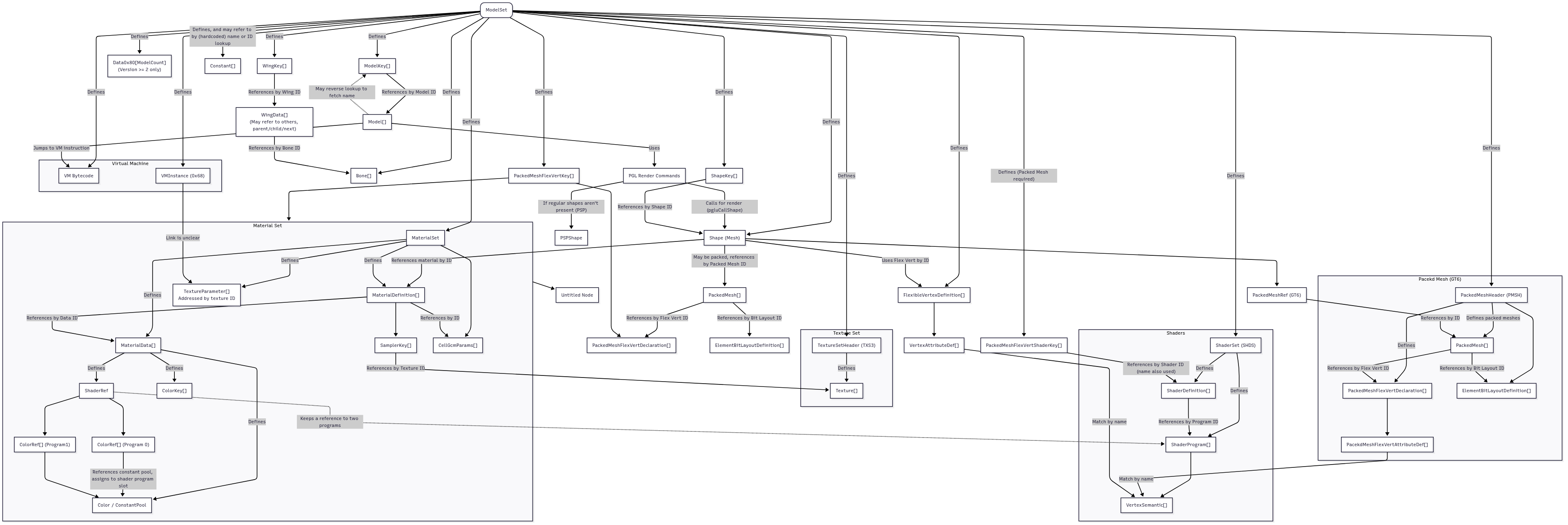

It is a rather structured, yet complex format.
Header¶
Structure (click to expand)
Size: 0xE4 (Version 14)
| Field | Offset | Type | Description |
|---|---|---|---|
MDL3 or 3LDM |
0x00 |
Int |
Magic, (Enforced, cannot be different), depends on endian (Little will be 3LDM) |
| File Size | 0x04 |
Int |
File Size |
| Relocation Pointer | 0x08 |
Int |
Relocation Pointer |
| Version Major | 0x0C |
ushort |
Version Major for reading the file |
| Runtime Flags | 0x0E |
ushort |
Flags assigned at runtime |
| Model Count | 0x10 |
ushort |
Number of models in the set. Note that one model is more like a mesh group. |
| Model Key Count | 0x12 |
ushort |
Number of model keys in the set. Models link directly to this. This is optional. |
| Mesh Count | 0x14 |
ushort |
Number of meshes in the set. |
| Mesh Key Count | 0x16 |
ushort |
Number of mesh keys in the set. Meshes link directly to this. This is optional. |
| FVF Count | 0x18 |
ushort |
Number of flexible vertex definitions in the set. Meshes uses this. |
| Bones Count | 0x1A |
ushort |
Number of bones in the set. |
| SizeFor0x68 | 0x1C |
ushort |
Unknown. |
| Host Method Count | 0x1E |
ushort |
Number of host methods in the set. Linked to the virtual machine. |
| VM Stack Size | 0x20 |
ushort |
Size of the virtual machine stack. |
| Count 0x5C | 0x22 |
ushort |
Unknown count for 0x5C. |
| Unknown | 0x24 |
ushort |
Unknown. |
| Count 0x78 | 0x26 |
ushort |
Unknown count for 0x78. |
| Count 0xA4 | 0x28 |
ushort |
Unknown count for 0xA4. |
| Count 0x54 | 0x2A |
ushort |
Unknown count for 0x54. |
| Count 0x88 | 0x2C |
ushort |
Unknown count for 0x88. |
| Unknown | 0x2E |
ushort |
Unknown. Rather large value. |
| Models Pointer | 0x30 |
Model* |
Pointer to the array of models. |
| Model Keys Pointer | 0x34 |
ModelKey* |
Pointer to the array of model keys. |
| Meshes Pointer | 0x38 |
Mesh* |
Pointer to the array of meshes. |
| Mesh Keys Pointer | 0x3C |
MeshKey* |
Pointer to the array of mesh keys. |
| FVF Pointer | 0x40 |
FVF* |
Pointer to the array of flexible vertex definitions. |
| Materials Pointer | 0x44 |
MaterialInfo* |
Pointer to the material info structure. |
| Texture Set Pointer | 0x48 |
TXS3* |
Pointer to the texture set. Used by materials. |
| Shaders Header Pointer | 0x4C |
ShaderHeader* |
Pointer to the shader header. |
| Bones Pointer | 0x50 |
Bone* |
Pointer to the bone array. |
| Unk 0x54 | 0x54 |
UnkKey0x54* |
Pointer to unknown keys. |
| Host Method Pointer | 0x58 |
HostMethod* |
Pointer to host methods. |
| Unk 0x5C | 0x5C |
void* |
Unknown pointer. |
| VM Opcodes Size | 0x60 |
UInt |
Size of all the virtual machine opcodes. |
| VM Opcodes Offset | 0x64 |
byte* |
Pointer to the start of the virual machine opcodes. |
| VM Instance Offset | 0x68 |
byte* |
Pointer to the virtual machine instance. This is pre-allocated depending on combined stack size, used at runtime. |
| Relocation Pointer2 | 0x6C |
Int |
Unknown. May be a second relocation pointer. |
| Empty | 0x70 |
Int |
N/A. |
| Runtime Value | 0x74 |
Int |
Unknown. Set at runtime. |
| Unk 0x78 | 0x78 |
Unk0x78* |
Pointer to unknown. Stride is 0x14 per entry. |
| Unknown | 0x7C |
UInt |
Unknown. |
| Empty | 0x80 |
Int |
N/A. |
| Unknown Index | 0x84 |
ushort |
? |
| Unknown Index | 0x86 |
ushort |
? |
| Unk 0x88 | 0x88 |
Unk0x88* |
Pointer to unknown. Some entry in materials point to this aswell. |
| Unknown Index | 0x8C |
ushort |
? |
| Texture Type Count | 0x8E |
ushort |
Number of texture keys in the set. |
| Texture Types Pointer | 0x90 |
TextureKey* |
Pointer to the array of texture type names in the set. |
| Empty | 0x94 |
Int |
N/A. |
| Wing Data Count | 0x98 |
ushort |
Count of data (related to wings) |
| Wing Data Key Count | 0x9A |
ushort |
Count of wing keys |
| Wing Data Pointer | 0x9C |
WingData* |
Pointer to wing data |
| Wing Data Keys Pointer | 0xA0 |
WingDataKey* |
Pointer to wing keys |
| Unk 0xA4 | 0xA4 |
Unk0xA8* |
Pointer to unknown. 0x04 Stride. |
| Empty | 0xA8 |
Int |
N/A. |
| Shape Streaming Pointer | 0xAC |
ShapeStreamInfo* |
Pointer to shape streaming info for courses. |
| Unk 0xB0 | 0xB0 |
Unk0xB0* |
Pointer to unknown. 0x40 Stride. |
| Unk 0xB4 | 0xB4 |
Int |
Unknown |
| Unk 0xB8 | 0xB8 |
void* |
Unknown pointer. |
| VM Context Pointer | 0xBC |
void* |
VM Context pointer, 0x20 stride |
| Unk 0xC0 | 0xC0 |
void* |
Unknown pointer. |
| Count 0xC0 | 0xC4 |
ushort |
Count for 0xC0 |
| Empty | 0xC6 |
ushort |
N/A |
| Unk 0xC8 | 0xC8 |
short |
-1 |
| Packed Mesh Key Count | 0xCA |
ushort |
Count of keys for packed mesh |
| Packed Mesh Keys Pointer | 0xCC |
PackedMeshKey* |
Pointer to packed mesh keys |
| Packed Mesh Hedr Pointer | 0xCC |
PackedMeshHeader* |
Pointer to packed mesh header PMSH |
| Empty | 0xD4 |
ushort |
N/A |
| Empty | 0xD8 |
ushort |
N/A |
| Separate Data Info Ptr | 0xDC |
SepDataInfo* |
Pointer to separate data info - for car streaming in GT6 |
Model¶
Represents a model. Meshes linked to it are setup from the commands.
Size: 0x30
| Field | Offset | Type | Description |
|---|---|---|---|
| Unknown | 0x00 |
float |
? |
| Origin | 0x04 |
Vector3 |
Origin position of this model |
| Unknown | 0x10 |
byte |
? |
| Unknown | 0x11 |
byte |
? |
| Bounds Count | 0x12 |
ushort |
Number of vec3 components for the bounds |
| Bounds Pointer | 0x14 |
Vector3 |
Pointer to the bounds of this model |
| Setup Commands Pointer | 0x18 |
void* |
Pointer to the setup opcodes for this model. |
| Setup Commands Size | 0x1C |
Int |
Size of the setup opcodes/commands. |
| VM Pointers | 0x20 |
Int[3] |
Current VM pointers for each type. |
| Unknown | 0x2C |
short |
Unknown. Maybe an index. |
| Unknown | 0x2E |
ushort |
Unknown. Maybe flags. |
Commands
Commands setup what meshes are linked to a model, but can also directly set RSX parameters (on PS3).
While PSP and PS3 GTs supports most opcodes, they also have their own (assigned with their unique opcode).
Refer to PDTools.Files for the commands.
Model Key¶
This is purely for debugging, they are not necessary. Keys contain the source path for the model.
Size: 0x08
| Field | Offset | Type | Description |
|---|---|---|---|
| Name Pointer | 0x00 |
char* |
Pointer to the name of the key (Zero-terminated) |
| Model ID | 0x04 |
Int |
Model ID. |
Mesh¶
| Field | Offset | Type | Description |
|---|---|---|---|
| Unknown | 0x00 |
ushort |
Flags |
| FVF Index | 0x02 |
short |
Flexible vertex definition to use for the mesh data. If empty, check PMSH. |
| Material Index | 0x04 |
short |
Material index to use for this mesh. |
| Unknown | 0x06 |
byte |
Unknown/Empty. |
| Unknown | 0x07 |
byte |
Unknown/Empty. |
| Vertex Count | 0x08 |
uint |
Number of verts in this mesh. If empty, check PMSH. |
| Vertex Pointer | 0x0C |
byte* |
Pointer to the vertices. Must be read according to flexible vertices (if present). |
| Unknown | 0x10 |
uint |
? |
| Tri Length | 0x14 |
uint |
Size of the tris. If empty, check PMSH. |
| Tri Pointer | 0x18 |
short* |
Pointer to the tris. If empty, check PMSH. |
| Unknown | 0x1C |
Int |
Unknown/Empty. |
| Unknown | 0x20 |
Int |
Unknown/Empty. |
| Unknown | 0x24 |
short |
Unknown/Empty. |
| Tri Count | 0x26 |
short |
Number of tris. If empty, check PMSH. |
| Boundary Box Pointer | 0x28 |
Vector3* |
Pointer to the boundary box. If empty, check PMSH. |
| PMSH Reference Pointer | 0x2C |
PMSHRef* |
Pointer to some PMSH indicator. |
PMSH Ref¶
Size: 0x34
| Field | Offset | Type | Description |
|---|---|---|---|
| Unknown/Empty | 0x00 |
Int[12] |
N/A |
| PMSH Index | 0x30 |
Int |
Packed Mesh entry to use. |
Model Key¶
This is purely for debugging, they are not necessary. Keys contain the source path for the mesh.
Size: 0x08
| Field | Offset | Type | Description |
|---|---|---|---|
| Name Pointer | 0x00 |
char* |
Pointer to the name of the key (Zero-terminated) |
| Mesh ID | 0x04 |
Int |
Mesh ID. |
FVF / Flexible Vertex Definition¶
Addressed by meshes.
Size: 0x78
| Field | Offset | Type | Description |
|---|---|---|---|
| Name Pointer | 0x00 |
char* |
Name/Type of FVF. Important - usually "Flex". |
| Shader Related Index | 0x04 |
short |
Partially known to be an index to shaders. |
| Field Def Offset | 0x08 |
FVFField* |
Pointer to the FVF fields composing this FVF. i.e describes map12 which is UVs. |
| Unknown Index | 0x0C |
short |
Some index assigned at runtime. |
| Empty | 0x0E |
short |
N/A |
| Unknown | 0x10 |
Int |
Unknown/Empty. |
| Unk 0x14 | 0x14 |
Unk0x14* |
Pointer to unknown. |
| Field Def Count | 0x18 |
byte |
Number of fields in this FVF structure. |
| FVF Structure Size | 0x19 |
byte |
Size of the FVF structure with all the fields combined essentially the size of one vert. |
| Empty | 0x1A |
short |
N/A |
| Empty/Runtime Data | 0x1C |
byte[0x58] |
N/A |
| Field Array Pointer | 0x74 |
FVFArrayDef* |
Array definition pointer |
